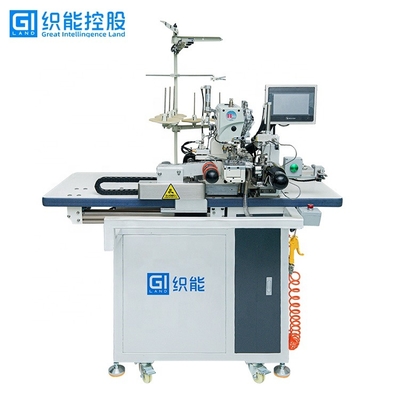

Automatic Tubular Edger GI Land T-shirt Bottom Hemming Sewing Machine Suitable For Sewing Different Fabric

1 set
MOQ
$11,000.00(>=1 sets)
価格
Automatic Tubular Edger GI Land T-shirt Bottom Hemming Sewing Machine Suitable For Sewing Different Fabric
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Features: edge cutter, Programmable, Automatic Lubrication, HIGH-SPEED
Applicable Industries: Garment Shops, Manufacturing Plant
Condition: New
Type: Industrial Sewing Machine
Stitch Formation: Chain Stitch
Mechanical Configuration: Flat-Bed
Max. Sewing Thickness: 5mm
Stitch Length: 1-5mm
Power: 0.6kw
Overall Dimensions: 130(L)*80(W)*160(H)cm
Feed Mechanism: Automatic
Warranty: 1 Year
Key Selling Points: Automatic
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: PLC, Gear, Motor, Bearing
Weight (KG): 150 KG
Operation: Computerized
Product name: Tubular bottom hemming machine
Control System: NC Control
Needle type: UY128(9#,10#,11#,12#)
Machine head: PEGASUS FAEMA W 3662P
Size of Stitching Speed: Circumference 70-170 cm
Power Supply: AC220V-240V, 50Hz
Efficiency: Max180-200pcs/h
Use air pressure: 0.5-0.6MPa(5-6kgf/cm2)
OEM: Accept
Local Service Location: Vietnam,Philippines,Indonesia, Pakistan, Thailand, Malaysia,Bangladesh
基本情報
お支払配送条件
Packaging Details: wooden case
Supply Ability: 100 Set/Sets per Week
製品の説明
Product Description

Product Advantages:

1.Suitable for sewing different fabrics; 2.Adopt Japanese Panasonic brand sensor; 3.The stop is smooth and even; 4.There is a wide range of adaptability for sewing, from children's clothing to adults'clothing; 5.Automatic size changing, Automatic counting; 6.Patented deviation correction mechanism and intelligent sensing system; 7.Upper thread breakage and bottom thread end detection function.

The main body is an intelligent sewing equipment designed by Pegasus head, which has high durability, stable performance and convenient maintenance. The electric spreader wheel can accurately identify the size, automatically find the bone and identify the seam position.
The original intelligent deviation correction device of the hem machine makes each stitch extremely accurate. Combined with the advanced cloth guide edge and automatic bottom folding design, each product can achieve the most perfect manufacturing process. Finally, the stacking system is completed automatically, which can save man hours and realize the operation of one person and multiple machines.
Details Images
Specification
Parameter
Model
ZN-XBJ-W3662P
Power Supply
AC220V-240V, 50Hz, 0.6KW
Mahine Head
PEGASUS FAEMA W 3662P
Stitch Length
1-5mm
Needle Type
UY128(9#,10#,11#,12#)
Efficiency
Max180-200pcs/h
Stitching Speed
400-4000rpm
Size of Stitching Speed
Circumference 70-170 cm
Sewing Tubular Circumference
750-1670mm
Weight
150kg
Outlook Size
130(L)*80(W)*160(H)CM
OEM
Accept
Certificate
CE / ISO / RoHS / SGS
Local Service Location
Egypt, Turkey, Germany, Viet Nam, Philippines, Indonesia, Pakistan, Russia, Thailand, Japan, Malaysia, Sri Lanka, Bangladesh, Kazakhstan, Kyrgyzstan
Recommend Products
Company Profile
Foshan Zhineng Mingjie Automation Technology Co., Ltd. was founded in 2020, was based on GI LAND company. GI LAND was founded in 2007,for more than 10 years, it has been committed to the exploration and research and development of overall solutions for garment intelligent factories. It has set up offices in many overseas countries, 4 garment equipment production factories and 3 software system research and development companies in China.The GI LAND company's products include automatic cutting machine, automatic spreading machine, computer template sewing machine, intelligent hanging system, intelligent sorting system, intelligent warehouse, MES, etc. The company's products have covered more than 10 industries related to flexible material products such as clothing, furniture, toys, luggage, car seats, composite materials and textile crafts.From AI cutting area to automatic garment production line, from intelligent production software to intelligent garment factory logistics solutions, GI LAND has provided hardware and software support to more than 5000 garment enterprises in 20 countries. With its strong support,Foshan Zhineng Mingjie Automation Technology Co.,has been dominated by quality and service first, focusing on the research and development, production and sales of knitting automation equipment, And has won the favor of many customers!
1. We have a strong technical research and development team: the GI LAND group has been deeply engaged in the garment equipment industry for more than 10 years.It has established 4 garment equipment production factories and 3 software system research and development companies in China, and has a number of product patents.

2. We are an enterprise integrating industry and trade, and we support OEM: we have our own production factory and sales team, which greatly reduces costs on the premise of ensuring product quality. We have professional quality inspectors who will check product quality layer by layer.

3. Our products and services have been recognized by our customers: we have more than 5000 customers in more than 20 countries around the world.Our products and services are well-known at home and abroad. Among them, we have established cooperation with the world famous enterprises,such as Li Ning, Uniqlo, Adidas, Nike, Bosideng, and JOEONE, and has won the trust and support of partners.
Company Customers
Product packaging
FAQ
1. who are we? We are based in Guangdong, China, start from 2019,sell to Southeast Asia(25.00%),South Asia(25.00%),Mid East(10.00%),Eastern Asia(10.00%),Domestic Market(5.00%),Eastern Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Western Europe(5.00%),Oceania(5.00%). There are total about 51-100 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3. why should you buy from us not from other suppliers? GI Land founded in 2009, it is committed to global apparel intelligent factory solutions, To accelerate the transformation of global intelligent clothing factory and work together! 4. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES； Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash; Language Spoken:English,Chinese
